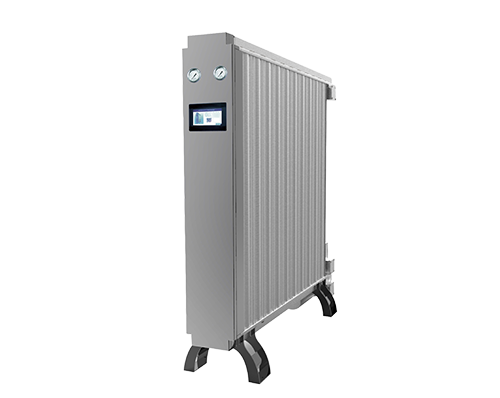

Heatless regeneration modular dessicant air dryer
Working condition and technical index
working pressure 0.7-1.0Mpa
pressure dew point -40℃
Registration
Characteristic of Heatless regeneration modular dessicant air dryer
Integrated design, the touch screen and PLC into one, reduce the connection, more stable performance, wiring more simple
7-inch 32-bit true color touch screen
Special PLC controller
Standard RS485 communication interface, easy to control
Optional Ethernet / can communication interface
Product specifications
| model | Air handling capacity （Nm3/min） | Weight of desiccant （kg） | Diameter of air nozzle | Net weight of equipment（Kg） | L（mm） | W（mm） | H（mm） |
| SDXM-1W | 1.2 | 12.5 | G1" | 37 | 470 | 225 | 865.5 |
| SDXM-1.5W | 1.8 | 18.75 | G1" | 46 | 470 | 225 | 1215.5 |
| SDXM-2W | 2.5 | 25 | G1" | 55 | 470 | 225 | 1565.5 |
| SDXM-3W | 3.6 | 37.5 | G1" | 78 | 520 | 270 | 1215.5 |
| SDXM-4.5W | 5 | 50 | G1" | 98 | 520 | 270 | 1565.5 |
| SDXM-8W | 8.5 | 75 | G2" | 225 | 795 | 448 | 1735 |
| SDXM-10W | 10.9 | 100 | G2" | 265 | 930 | 448 | 1735 |
| SDXM-15W | 16.5 | 125 | G2" | 305 | 1065 | 448 | 1735 |
| SDXM-20W | 22 | 200 | G2-1/2" | 425 | 1470 | 448 | 1735 |
| SDXM-25W | 26.8 | 250 | G2-1/2" | 505 | 1740 | 448 | 1735 |
| SDXM-30W | 32 | 275 | G2-1/2" | 545 | 1875 | 448 | 1735 |
| SDXM-35W | 38.5 | 350 | G3" | 765 | 1335 | 722 | 1735 |
| SDXM-40W | 43.5 | 400 | G3" | 845 | 1470 | 722 | 1735 |
Optional Accessories
Customizable dew point meter
Pressure sensor
Temperature sensor
-70 ℃ dew point
