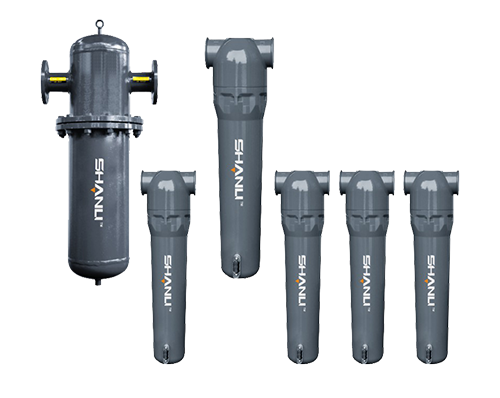

Compressed Air Filters

level (HF9 class) main line filters
feature：

  • The first stage using by a removable stainless steel mesh core and centrifugal to separate 10μm or larger solid particles and liquid particles.
  • The second stage using alternative glass fiber filter 3μm or bigger solid particles and liquid particles completely, gravity to filter the water to the filter bottom and discharged.
  • Inner and outer filter are corrosion resistant
  • 5PPM the remaining oil mist content.

Download PDF Submit your Inquiry

Registration

level (HF9 class) main line filters
feature

  1. The first stage using by a removable stainless steel mesh core and centrifugal to separate 10μm or larger solid particles and liquid particles.
  2. The second stage using alternative glass fiber filter 3μm or bigger solid particles and liquid particles completely, gravity to filter the water to the filter bottom and discharged.
  3. Inner and outer filter are corrosion resistant
  4. 5PPM the remaining oil mist content.


HT Level (HF7 Class)oil mist filter
features:

  1. Supporting screws holding the filter stable against shocks.
  2. Muti-layer glass fiber completely filter 1μm or bigger solid particles and liquid particles, and has a function to reduce the pressure drop.
  3. The air filtered by perforated outer cylinder, thereby rapidly flows to the filter outlet.
  4. Inner and outer filter are corrosion resistant.
  5. Remaining oil mist content 1PPM


HA l Level (HF5) oil mist filter
features:

  1. Supporting screws holding the filter stable against shocks.
  2. Internal elastic sponge have a pre-filter function.
  3. Density, diameter and surface treatment specially designed of micro-glass fibers can fibers can filter 0.01μm solid particles and liquid particles.
  4. The outer layer of sponge to absorb and discharge oil mist.
  5. Inner and outer filter are corrosion resistant.
  6. Remaining oil mist content 0.01PPm.


HF Level (HF3 Class) oil mist filter
features:

  1. Inner and outer filter are corrosion resistant.
  2. Closed coating sponge sleeve takes pre-filter and air flow dispersion.
  3. Density multi-layer matrix composite glass fiber specially designed can filter 0.01 μm solid particles and liquid particles.
  4. The remaining oil mist content 0.003 PPM


HH Level (HF1 Class) oil mist filter
features:

  • Inner and outer filter are corrosion resistant.
  • Very fine activated carbon powder stable layer to filter out most of the oil vapor.
  • Specially designed composite fiber media bonded micro fine activated carbon powder, filter out solid particles and liquid particles of 0.01 μm.
  • Textile composite fiber layer of activated carbon particles displacement, the outer coating closed sponge tube to prevent fiber network wavering.
  • Under rated operating conditions, the design life is 2000 hours, the remaining oil mist content 0.03 μm.
Product level Filtration accuracy Remaining oil Initial pressure drop (compressed state)the concentration challenges of inlet
HC level（HF9） 3μm 5ppm 0.007MPa N/A
HT level（HF7） 1μm 1ppm 0.007MPa 10PPm
HA level（HF5） 0.01μm 0.01ppm 0.01MPa 3PPm
HF level（HF3） 0.01μm 0.003ppm 0.01MPa 0.1PPm
HH level（HF1） 0.01μm 0.003ppm 0.01MPa 0.1PPm


Product specifications

SAGL series compressed air filters

model air flow
（Nm3/min） 		Element qty size Connection diameter weight Outside drawing
A(mm) B(mm) C(mm)

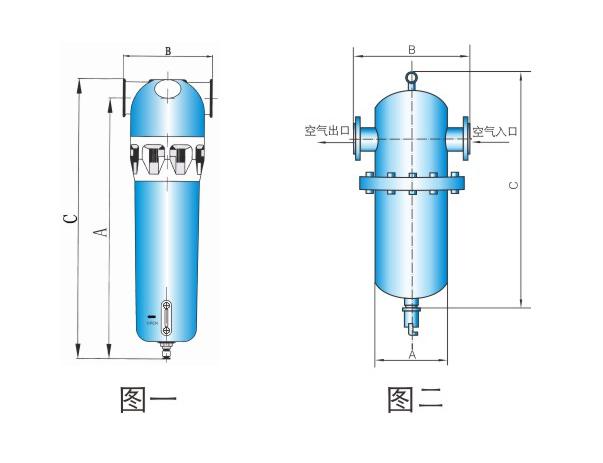

SAGL-0.5* 0.65 1 337 125 361 G1" 1.9 Figure 1
SAGL -1* 1.2 1 337 125 361 G1" 1.9
SAGL -2* 2.5 1 337 125 361 G1" 1.9
SAGL -3* 3.6 1 337 125 361 G1" 1.9
SAGL -4.5* 5.0 1 444 152 475 G1-1/2" 3.4
SAGL -6* 6.8 1 444 152 475 G1-1/2" 3.4
SAGL -8* 8.5 1 595 160 767 G2" 5.3
SAGL -10* 10.9 1 595 160 767 G2" 5.3
SAGL -12* 12.8 1 595 160 767 G2" 5.3
SAGL -15* 16 1 Ф159 399 950 DN65 49 Figure 2
SAGL -20* 22 1 Ф159 399 1100 DN65 53
SAGL -25* 26.8 1 Ф159 399 1250 DN80 59
SAGL -30* 32 2 Ф219 459 985 DN80 67
SAGL -40* 43.5 2 Ф219 459 1130 DN100 75
SAGL -50* 53 3 Ф273 513 1190 DN100 109
SAGL -60* 67 3 Ф273 513 1190 DN125 114
SAGL -80* 90 4 Ф325 565 1220 DN125 132
SAGL-100* 110 5 Ф377 637 1290 DN150 177
SAGL-120* 130 5 Ф377 637 1445 DN150 187
SAGL-150* 160 7 Ф462 762 1630 DN200 215
SAGL-200* 210 9 Ф462 762 1630 DN200 216
SAGL-250* 260 11 Ф512 812 1760 DN250 271
SAGL-300* 315 13 Ф562 862 1810 DN250 310
SAGL-350* 350 16 Ф662 962 1925 DN300 397
SAGL-400* 400 18 Ф662 962 1935 DN300 398
SAGL-450* 450 20 Ф712 1012 2000 DN350 462
SAGL-500* 500 23 Ф712 1012 2000 DN350 500
SAGL-550* 550 26 Ф816 1116 2005 DN400 560
SAGL-600* 600 28 Ф816 1116 2005 DN400 600


note:

  1. “*”indicates the product level: HC、HT、HA、HF、HH.
  2. This series of precision filter, filter element uses the technology of HANKISON.
  3. Filter element precision is based on ISO8573.
  4. Required to specify when ordering. The amount of processing at different pressures should be corrected coefficient as the coefficient correction table.
