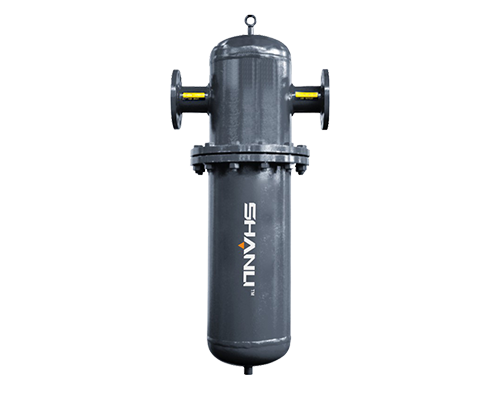

Dust Fine Filter

Working condition and technical data
inlet air pressure  0.6-1.0MPa
inlet air temperature  ≤60℃
the initial pressure drop  ≤0.07MPa
outlet air dust particle size ≤1um
* The above parameters pressure technical standard 0.7MPa
* Other special standard can be customized.

Download PDF Submit your Inquiry

Registration
The series has a small size, compact structure, high filtration efficiency, easy maintenance features, designed for the chemical, textile, petroleum, metallurgy, textiles, electronics, telecommunications and other industries pneumatic control, pneumatic components and industrial gas providing clean compressed air source.

Product specifications

model Air capacity （Nm3/min） Air connection pipe diameter size weight
（kg）
A(mm) B（mm） C（mm）
SAGL-1FC 1.2 G1" 337 125 361 1.9
SAGL-2FC 2.5 G1" 337 125 361 1.9
SAGL-3FC 3.6 G1" 337 125 361 1.9
SAGL-4.5FC 5 G1-1/2" 444 152 475 3.4
SAGL-6FC 6.8 G1-1/2" 444 152 475 3.4
SAGL-8FC 8.5 G2" 734 160 767 5.3
SAGL-10FC 10.9 G2" 734 160 767 5.3
SAGL-12FC 12.8 G2" 734 160 767 5.3
SAGL-15FC 16 DN65 Φ159 399 950 49
SAGL-20FC 22 DN65 Φ159 399 950 53
SAGL-25FC 26.8 DN80 Φ159 399 950 59
SAGL-30FC 32 DN80 Φ219 459 985 67
SAGL-40FC 43.5 DN100 Φ219 459 1130 75
SAGL-50FC 53 DN100 Φ273 513 1190 109
SAGL-60FC 67 DN125 Φ273 513 1190 114
SAGL-80FC 90 DN125 Φ325 565 1220 132
SAGL-100FC 110 DN150 Φ377 637 1290 177
SAGL-120FC 130 DN150 Φ377 637 1445 187
SAGL-150FC 160 DN200 Φ462 762 1630 215
SAGL-200FC 210 DN200 Φ462 762 1630 216
SAGL-250FC 250 DN250 Φ512 812 1760 271
SAGL-300FC 300 DN250 Φ562 862 1810 310


Optional Accessories

  • Filter element
  • Pressure differential gauge
  • Not limited to this
